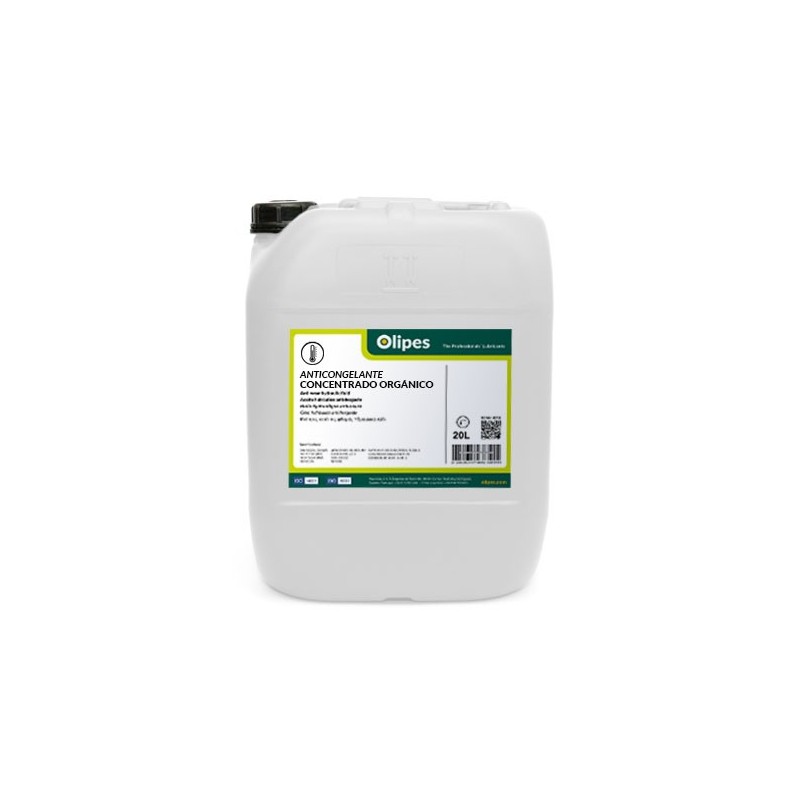

Anticongelante Concentrado Organic

Anticongelante Concentrado Organic

7750820

Concentrated coolant-antifreeze, prepared for usage by diluting with demineralized water with a maximum recommended concentration between 60% and 40% of product and a minimum of 35% preferable.

Available in
  • 20 Litres
  • 200 Litres


Especially designed with 100% organic additivation (OAT) with a view to meeting the demands of modern refrigeration systems in closed circuits in light vehicles, heavy transport, buses, construction and agricultural machinery and stationary engines.
Product not suitable for use in heating systems in household installations.


PROPERTIES & ADVANTAGES:

100% organic, silicate‐free additivation (OAT).

Its formulation, in line with the latest technology, affords the coolant‐antifreeze all the properties and characteristics required for its optimal operation:

- Antifreeze with protection up to ‐42ºC in 60% dilutions of product in demineralized water.
- Coolant, working effectively in pressured circuit, lowering its boiling point to 150°C and avoiding engine overheating.
- Anticorrosion. Its 100% organic additives effectively protect all metallic components of the cooling system, including cast iron, aluminum, copper and alloy welds.
- Anti‐cavitation, avoiding foam and air retention, facilitating optimal pump operation.
- NAP-free corrosion inhibitors: free of any nitrites, amines and phosphates as well as any other components which are harmful or hazardous to the ecosystem such as: boron compounds and molybdates.
- Complete biodegradation in 20 days, calculation carried out on the main component.
- Long product service life:

   Up to 650,000 km or 5 years in heavy transport vehicles and buses.
   Up to 8,000 hours or 5 years in construction and agricultural machinery.
   Up to 250,000 km or 5 years in light vehicles.
   Up to 32,000 hours or 5 years in stationary engines.


TECHNICAL DATA:



Physicochemical Characteristics
Standard Value
Glycol content (%) UNE 26-361 / 2 > 85
Density (kg/l) ASTM D-1122 1.1
Boiling point (ºC) ASTM D-1120 > 150 (302)
pH ASTM D-1287 8.5-8.9



HOW TO USE:

Do not use ANTICONGELANTE CONCENTRADO ORGANIC directly. Dilute it with the amount of water required to obtain the desired freezing point. It is recommended to use demineralized water to obtain a greater yield and avoid the formation of lime deposits or of any other nature on the radiator, as well as completing operations of the circuit with the same coolant diluted at the same % rate. Never use water directly.

Check the freezing and boiling points required by the engine or machinery manufacturer:

Mixing table for 5L

Dilution in Volume, %

35

40

50

60

Antifreeze, liters

1.75

2.0

2.5

3.0

Water, liters

3.25

3.0

2.5

2.0

Protection temperature (°C)

-18

-25

-35

-42



SPECIFICATIONS / QUALITY LEVEL:

ANTINCONGELANTE CONCENTRADO ORGANIC, Concentrated Organic Antifreeze, meets among others the requirements of International Standards:

ASTM D-3306 (ASTM-D-1384, D-4340, D-2570, D-2809)

ASTM D-4985

CHR-MS-12106 (ASTM-D-2809 mod, D-6208)

UNE 26361-88( E)

AFNOR R 15/601(F) *

SAE J1034*

NATO S-759

BS 6580 (GB)

CUNA NC 956-16 (I)

EMPA (CH)

FVV Heft R 443 (D)

KSM 2142(K)

JIS K2234 (J)*

*except alkalinity reserve

ANTICONGELANTE CONCENTRADO ORGANIC, Concentrated Organic Antifreeze, satisfies among others the specifications of the following heavy machinery, transport and tractors' manufacturers:

AKERMAN

AUSA

BENATI

BOBCAT

BOMAG

CASE

NEW-HOLLAND-POCLAIN

CATERPILLAR (*)

CLAAS

CLARK MICHIGAN

CUMMINS 85T8-2 1 / 90T8-4

DAF: 74002

DOOSAN-DAEWOO

DEUTZ/MWN: 0199-99-2091 2

FIAT-HITACHI

FURUKAWA

GM US: 6277M

GM 1899M 1

HYUNDAI

ISUZU

JCB

JENBACHER

JOHN DEERE JDM: H24 C2/ JDM:H5

KOBELCO

KOMATSU 07.892 (2001)

LEYLAND TRUCKS LTS 22 AF10

LIEBHERR

MACK: 014GS17004

MAN 248 y 324 Type SNF

MAN B&W D36 5000

MANITOU

MASSEY-FERGUSON

MB: 325.3

MTU MTL 5048

RAYGO WAGNER

RENAULT TRUCKS: 41-01-001 Type D

SAMSUNG

SCANIA TB 1451

TEREX

TIGER

VOLVO: 260

WÄRTSILÄ 32-9011

WAUKESHA

YANMAR

(*) Caterpillar recommends substitute the fluid every 2 years of service, which guarantee a high level of protection and anticorrosion.

ANTICONGELANTE CONCENTRADO ORGANIC, Concentrated Organic Antifreeze, ensures maximum protection in the following car engines:

CHEVROLET

CHRYSLER: MS12106

DACIA

DAEWO

FIAT: 9.55523

FORD: WSS-M97B44D

HONDA: HES D2009-75

HYUNDAI / KIA

JAGUAR: VIN 878389

LAND ROVER /MG ROVER

MAZDA / MITSUBISHI / NISSAN



OPEL/GM: QL130100

PSA (PEUGEOT / CITROËN): B715110

RENAULT: 41.01.001 -D

SAAB

SUZUKI /TOYOTA

VAG Group (Audi, Seat, Volkswagen, Skoda) where it is needed to deploy G12 technology with organic additivation (OAT), specification: VW (VAG) TL-774D (G12). Compatible with G12 Plus.
