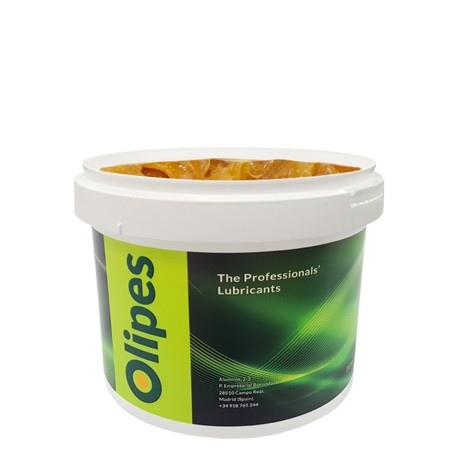

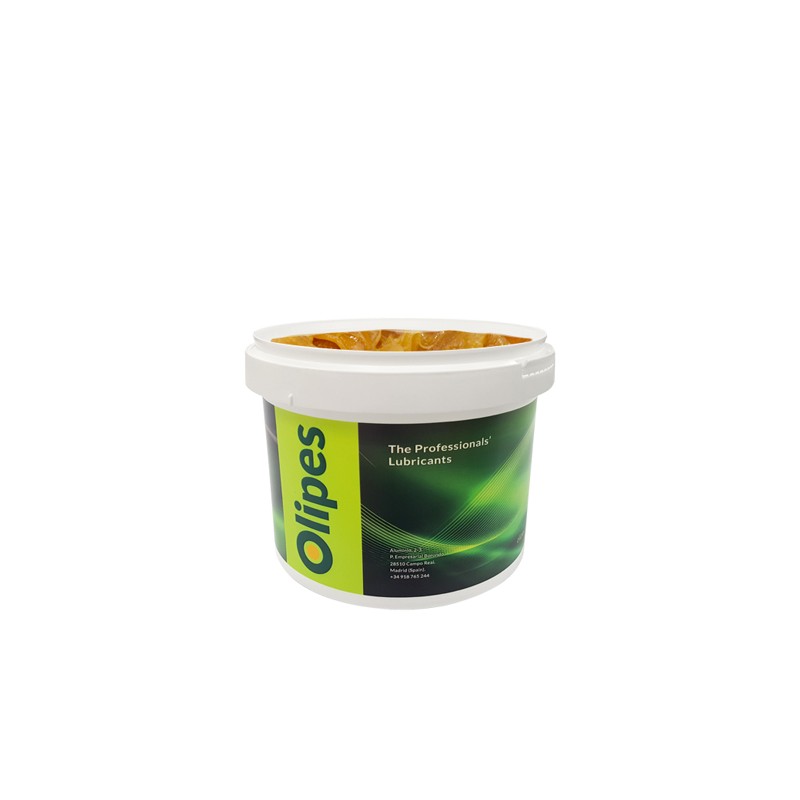

Maxigras C45 EP/3
7001605
EP multifunctional grease enhanced by plastic deformation of micro additives and formulated for lubricating under harsh mechanical conditions and large frequency in lubrication periods. Free of fillers and heavy metals.
APPLICATIONS:
- For all types of bearings working with heavy loads, vibration or moisture present.
- In journal bearings, including yellow alloys, working with heavy loads or partial rotation with wear abrasion.
- To protect the development of vibro-corrosions or accelerated wear of bearings and grooves in Cardan transmissions and slotted joints with high torque.
- Lubrication in rolling mills or calenders by sliding pads.
PROPERTIES:
- It ensures economic maintenance by reducing costs in mechanical interventions or lubrication.
- High power: antiwear, anticorrosion, antioxidant and anti-rust.
- High adhesion and smoothness.
- Working temperature from -20ºC to +120ºC (-4ºF to +248ºF), with peaks of +135°C (275ºF). Maximum application temperature, recommended for bearings depending on the speed factor.
- Excellent pumpability for using with gun and central lubrication.
SPECIFICATIONS:
|
CLASSIFICATION / GRADE |
NLGI 3 |
|
DIN 51502 |
KP3K-20 |
|
ISO 6743/9 |
L-XBCEB-3 |
TECHNICAL DATA:
|
PHYSICOCHEMICAL CHARACTERISTICS |
STANDARD |
VALUE |
|
Consistency (NLGI grade) |
DIN 51818 |
3 |
|
Thickener (Nature) |
---- |
Organic thickener |
|
Color |
Visual |
Amber |
|
Base oil (Viscosity ISO Grade) |
ISO 3448 |
100 / 150 |
|
Dropping point, ºC (ºF) |
ASTM D-2265 |
≥ 185 (365) |
|
Penetration loss: After 105 strokes, 25ºC, (77ºF) % |
ASTM D-217 |
±30 |
|
Water resistance, 3h, 90ºC (194ºF) |
DIN 51807 |
1 |
|
Emcor corrosion, distilled water |
DIN 51802 |
0/0 |
|
Copper corrosion, 24h, 100ºC, max. |
ASTM D-4048 |
1B |
|
Timken load, OK, lb |
ASTM D-2509 |
45 |
|
4-ball EP test, (weld load) |
ASTM D-2596 |
> 250 |
|
4-ball wear test (40 Kg/1200rpm/75ºC/1h) scar (mm) |
ASTM D-2266 |
< 0,50 |
