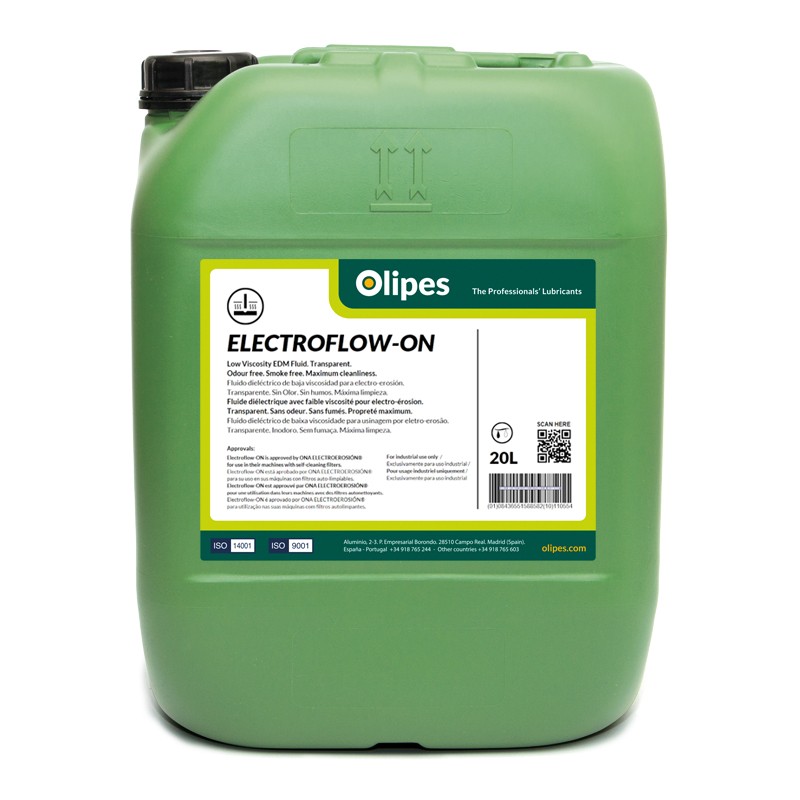

Electroflow-ON
7610490
Dielectric oil, formulated with synthetic bases free of aromatic products, specially designed for EDM (Electrical Discharge Machining) work.
Electroflow-ON is approved by ONA ELECTROEROSIÓN for use in their machines with self-cleaning filters.
TECHNICAL DATA:
|
PHYSICOCHEMICAL CHARACTERISTICS |
STANDARD |
VALUE |
|
Aspect |
Visual |
Bright and transparent liquid |
|
Color |
ASTM D-1500 |
≤0.5 |
|
Odor |
----- |
Light - odorless |
|
Density at 15 ºC |
ASTM D-1298 |
0.760 – 0.770 |
|
Viscosity, cSt. 20 ºC |
ASTM D-445 |
1.6 – 3.0 |
|
Flash point (ºC), Min. |
ASTM D-92 |
100 |
PROPERTIES:
Its low viscosity encourages rapid decanting of particles. Effective deaeration, avoiding the formation of foam.
Due to its high flash point, operational safety is improved.
It provides an excellent surface finish.
It extends the life of filters.
Its specific composition softens contact with skin.
Free of aromatic hydrocarbons.
It does not generate fumes or unpleasant odours during the EDM process.
RECOMMENDATION:
EDM work on ferrous metals with all types of machinery, even diatomaceous earth filters.
