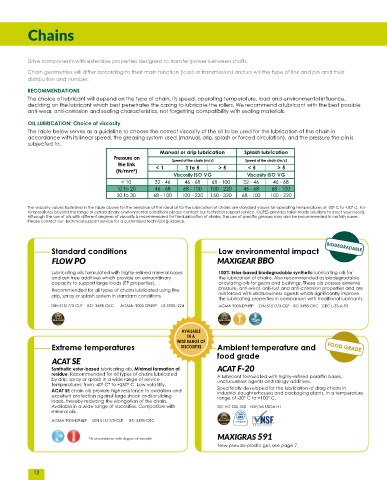

Chains
Drive components with extensive properties designed to transfer power between shafts.
Chain geometries will differ according to their main function (load or transmission) and so will the type of link and pin and their
distribution and number.
RECOMMENDATIONS
The choice of lubricant will depend on the type of chain, its speed, operating temperature, load and environmental influence,
deciding on the lubricant which best penetrates the casing to lubricate the rollers. We recommend a lubricant with the best possible
anti-wear, anti-corrosion and sealing characteristics, not forgetting compatibility with sealing materials.
OIL LUBRICATION: Choice of viscosity
The table below serves as a guideline to choose the correct viscosity of the oil to be used for the lubrication of the chain in
accordance with its linear speed, the greasing system used (manual, drip, splash or forced circulation), and the pressure the pin is
subjected to.
Manual or drip lubrication Splash lubrication
Pressure on Speed of the chain (m/s) Speed of the chain (m/s)
the link < 1 1 to 5 > 5 < 5 > 5
(N/mm²)
Viscosity ISO VG Viscosity ISO VG
< 10 32 - 46 46 - 68 68 - 100 32 - 46 46 - 68
10 to 20 46 - 68 68 - 100 100 - 220 46 - 68 68 - 100
20 to 30 68 - 100 100 - 220 150 - 320 68 - 100 100 - 220
The viscosity values illustrated in the table above for the selection of the ideal oil for the lubrication of chains are standard values for operating temperatures of -20º C to +50º C. For
temperatures beyond this range or extraordinary environmental conditions please contact our technical support service. OLIPES provides tailor-made solutions to meet your needs.
Although the use of oils with different degrees of viscosity is recommended for the lubrication of chains, the use of specific greases may also be recommended in certain cases.
Please contact our technical support service for a customized technical guidance.
Standard conditions Low environmental impact
FLOW PO MAXIGEAR BBO
Lubricating oils formulated with highly-refined mineral bases 100% Ester-based biodegradable synthetic lubricating oils for
and ash-free additives which provide an extraordinary the lubrication of chains. Also recommended as biodegradable
capacity to support large loads (EP properties). circulating oils for gears and bushings. These oils possess extreme
Recommended for all types of chains lubricated using the pressure, anti-wear, anti-rust and anti-corrosion properties and are
drip, spray or splash system in standard conditions. reinforced with unctuousness agents which significantly improve
the lubricating properties in comparison with traditional lubricants.
DIN:51517/3-CLP ISO: 3498-CKC AGMA: 9005-D94EP US STEEL:224 AGMA 9005-D94EP DIN 51517/3-CLP ISO 3498-CKC CEC L-33-A-93
AVAILABLE
IN A
WIDE RANGE OF
Extreme temperatures VISCOSITIES Ambient temperature and FOOD GRADE
food grade
ACAT SE
Synthetic ester-based lubricating oils. Minimal formation of ACAT F-20
residue. Recommended for all types of chains lubricated A lubricant formulated with highly-refined paraffin bases,
by drip, spray or splash in a wide range of service unctuousness agents and stringy additives.
temperatures: from -40º C* to +250º C. Low volatility.
ACAT SE chain oils provide high resistance to oxidation and Specifically developed for the lubrication of drag chains in
industrial slaughterhouses and packaging plants, in a temperature
excellent protection against large shock and/or sliding range of -20º C to +100º C.
loads, thereby reducing the elongation of the chain.
Available in a wide range of viscosities. Compatible with ISO VG 220-320 NSF/InS USDA H1
mineral oils.
AGMA 9005-D94EP DIN 51517/3-CLP ISO 3498-CKC
MAXIGRAS 591
* In accordance with degree of viscosity
New pseudo-plastic gel, see page 7.
