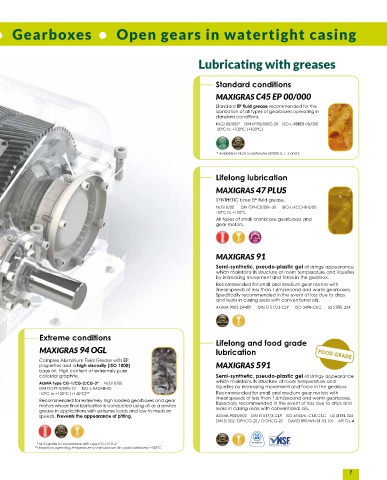

Page 9 - Olipes Industrial Maintenance

Multipliers • Motor variators • Gear motors • Gearboxes • Open gears in watertight casing

Lubricating with greases

Standard conditions

MAXIGRAS C45 EP 00/000
Standard EP fluid grease recommended for the
lubrication of all types of gearboxes operating in
standard conditions.
NLGI 00/000* DIN KP00/000G-20 ISO-L-XBBEB-00/000
-20ºC to +100ºC (+120ºC)

* Available in NLGI consistencies 00/000, 0, 1, 2 and 3

Lifelong lubrication

MAXIGRAS 47 PLUS
SYNTHETIC base EP fluid grease.
NLGI 0/00 DIN GPHC0/00K-30 ISO-L-XCCHB-0/00
-30ºC to +120ºC
All types of small crankcase gearboxes and
gear motors.

MAXIGRAS 91

Semi-synthetic, pseudo-plastic gel of stringy appearance
which maintains its structure at room temperature and liquefies
by increasing movement and force in the gearbox.
Recommended for small and medium gear motors with
linear speeds of less than 1.6m/second and worm gearboxes.
Specifically recommended in the event of loss due to drips
and leaks in casing seals with conventional oils.
AGMA 9005-D94EP DIN 51517/3-CLP ISO 3498-CKC US STEEL 224

Extreme conditions Lifelong and food grade
MAXIGRAS 94 OGL lubrication FOOD GRADE

Complex Aluminium Fluid Grease with EP
properties and a high viscosity (ISO 1000) MAXIGRAS 591
base oil. High content of extremely pure
colloidal graphite. Semi-synthetic, pseudo-plastic gel of stringy appearance
which maintains its structure at room temperature and
AGMA Type CG-1/CG-2/CG-3* NLGI 0/00
DIN OGPF 0/00N-10 ISO-L-XADHB-00 liquefies by increasing movement and force in the gearbox.
-10ºC to +120ºC (+140ºC)** Recommended for small and medium gear motors with
Recommended for extremely high loaded gearboxes and gear linear speeds of less than 1.6m/second and worm gearboxes.
Especially recommended in the event of loss due to drips and
motors whose final lubrication is conducted using oil as a service leaks in casing seals with conventional oils.
grease in applications with extreme loads and low to medium
speeds. Prevents the appearance of pitting. AGMA 9005/E02 DIN 51517/3-CLP ISO 6743/6- CKB-CKC US STEEL 224
DIN 51502: GPHCG-20 / OGHCG-20 DAVID BROWN S1.53.101 API GL-4

* NLGI grade in accordance with Type CG-1/CG-2
** Maximum operating temperature of the lubricant film (solid additives): +250ºC

7
